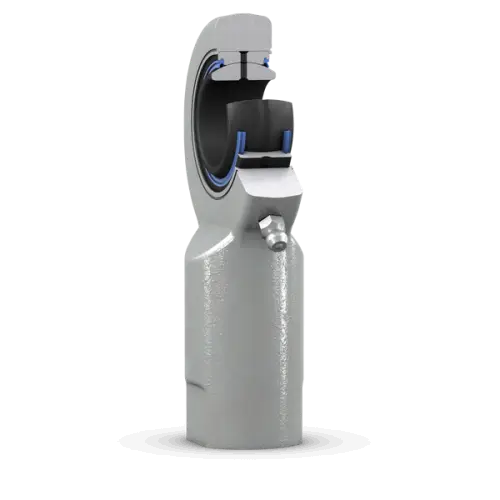

SKF SALA 60 ES-2RS
Rod end, requires maintenance, sealed, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
d2
137.0 mm
Diameter head
B
44.0 mm
Width inner ring
G
M 52x3
Thread
C1
39.0 mm
Width head
h
210.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
80.0 mm
Raceway diameter inner ring
l1
115.0 mm
Length thread
l2
281.0 mm
Length (height) housing
l7
73.0 mm
Distance shank chamfer - centre rod end eye
r1
1.0 mm
Chamfer dimension bore
mass
5.7 kg
Product net weight
