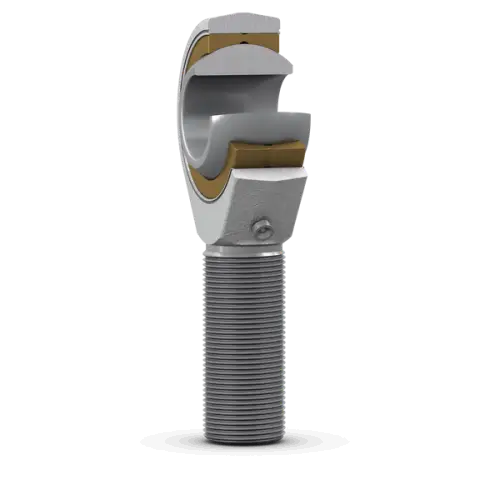

SKF SALKAC 12 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
d2
33.0 mm
Diameter head
B
16.0 mm
Width inner ring
G
M 12
Thread
C1
12.5 mm
Width head
h
54.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
22.225 mm
Raceway diameter inner ring
l1
32.0 mm
Length thread
l2
72.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.0955 kg
Product net weight
