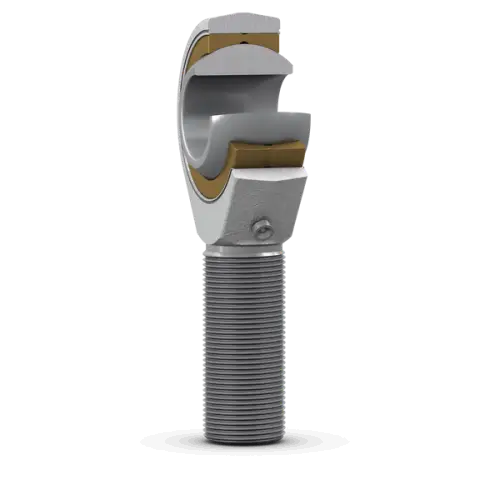

SKF SALKAC 25 M
Rod end, requires maintenance, male thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
d2
61.0 mm
Diameter head
B
31.0 mm
Width inner ring
G
M 24x2
Thread
C1
23.0 mm
Width head
h
94.0 mm
Height shank end face - centre rod end eye
α
15.0 °
Angle of tilt
dk
42.8 mm
Raceway diameter inner ring
l1
55.0 mm
Length thread
l2
127.0 mm
Length (height) housing
r1
0.3 mm
Chamfer dimension bore
mass
0.622 kg
Product net weight
