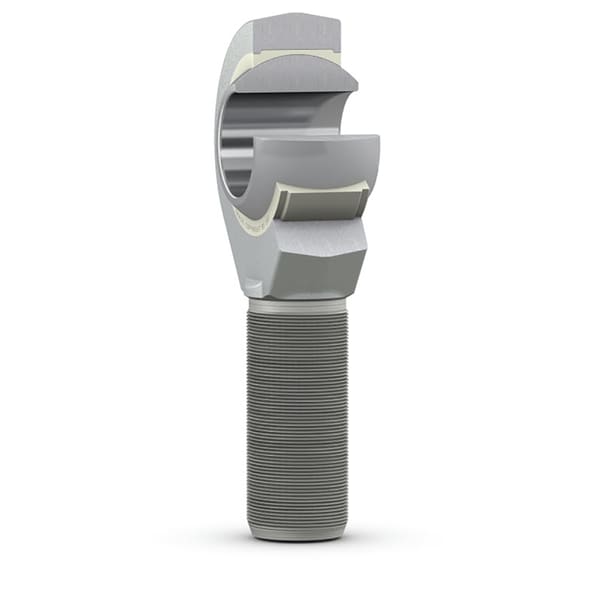

SKF SALKB 14 F
Rod end, maintenance-free, male thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
14.0 mm
Bore diameter
d2
37.0 mm
Diameter head
B
19.0 mm
Width inner ring
G
M 14
Thread
C1
14.5 mm
Width head
h
60.0 mm
Height shank end face - centre rod end eye
α
16.0 °
Angle of tilt
dk
25.4 mm
Raceway diameter inner ring
l1
36.0 mm
Length thread
l2
80.0 mm
Length (height) housing
l7
18.0 mm
Distance shank chamfer - centre rod end eye
r1
0.3 mm
Chamfer dimension bore
mass
0.131 kg
Product net weight
