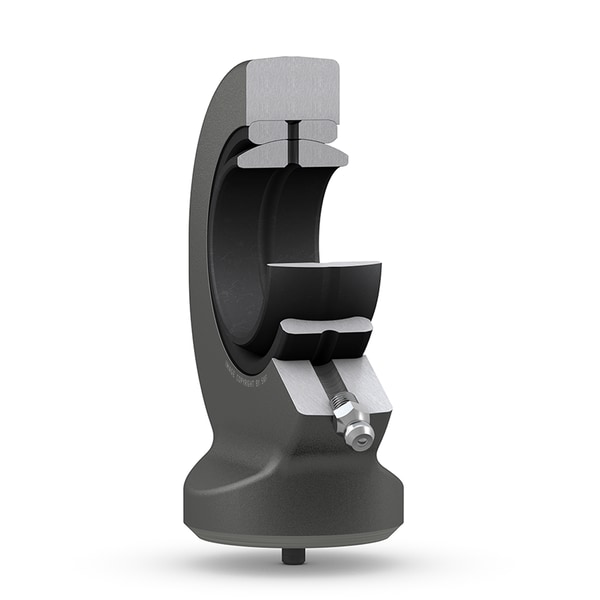

SKF SC 25 ES

Rod ends

(BRAND)：SKF

(Availability)：In Stock

d 25.0 mm Bore diameter

d₂ 65.0 mm Diameter head

B 20.0 mm Width inner ring

C₁ 18.0 mm Width head

h₂ 45.0 mm Height shank end face - centre rod end eye

α 7.0 ° Angle of tilt

d_k 35.5 mm Raceway diameter inner ring

d₅ 35.0 mm Diameter welding shank

d₆ 4.0 mm Diameter centering pin at welding shank end

l₆ 78.0 mm Length (height) housing

l₇ 30.0 mm Distance shank chamfer - centre rod end eye

l₈ 3.0 mm Length chamfer at welding shank end

r₁ 0.6 mm Chamfer dimension bore

mass 0.46 kg Product net weight
