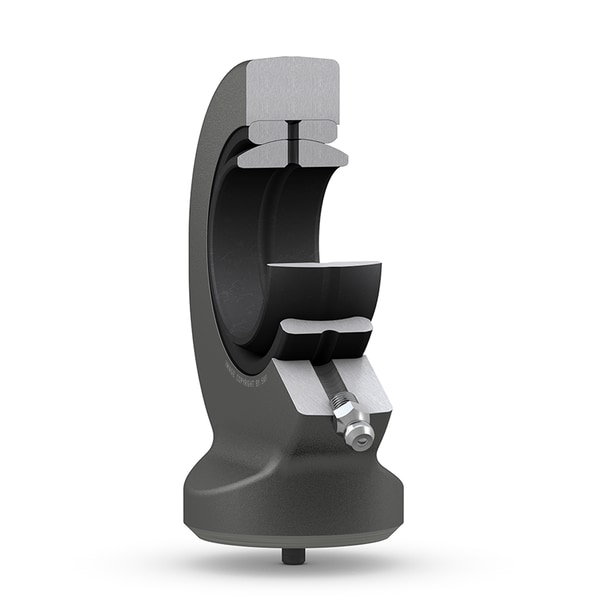

SKF SC 30 ES

Rod ends

(BRAND)：SKF

(Availability)：In Stock

d 30.0 mm Bore diameter

d₂ 75.0 mm Diameter head

B 22.0 mm Width inner ring

C₁ 20.0 mm Width head

h₂ 51.0 mm Height shank end face - centre rod end eye

α 6.0 ° Angle of tilt

d_k 40.7 mm Raceway diameter inner ring

d₅ 42.0 mm Diameter welding shank

d₆ 4.0 mm Diameter centering pin at welding shank end

l₆ 89.0 mm Length (height) housing

l₇ 34.0 mm Distance shank chamfer - centre rod end eye

l₈ 3.0 mm Length chamfer at welding shank end

r₁ 0.6 mm Chamfer dimension bore

mass 0.683 kg Product net weight
