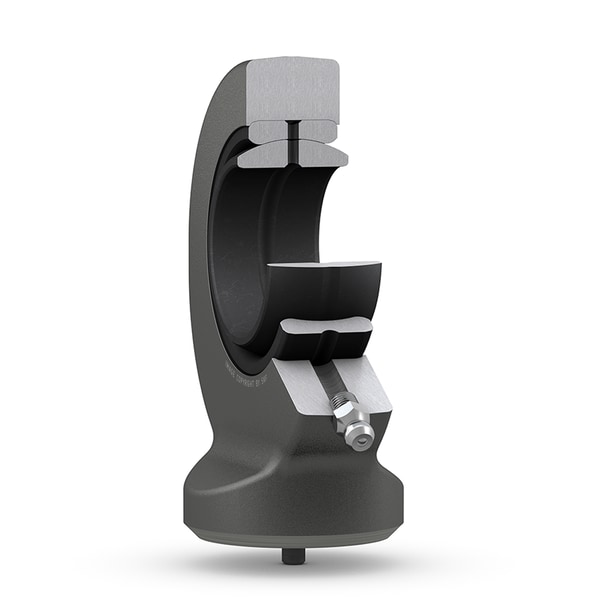

SKF SC 35 ES
Rod end, requires maintenance, cylindrical section welding shank
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
d2
84.0 mm
Diameter head
B
25.0 mm
Width inner ring
C1
22.0 mm
Width head
h2
61.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
47.0 mm
Raceway diameter inner ring
d5
49.0 mm
Diameter welding shank
d6
4.0 mm
Diameter centering pin at welding shank end
l6
104.0 mm
Length (height) housing
l7
40.0 mm
Distance shank chamfer - centre rod end eye
l8
3.0 mm
Length chamfer at welding shank end
r1
0.6 mm
Chamfer dimension bore
mass
0.996 kg
Product net weight
