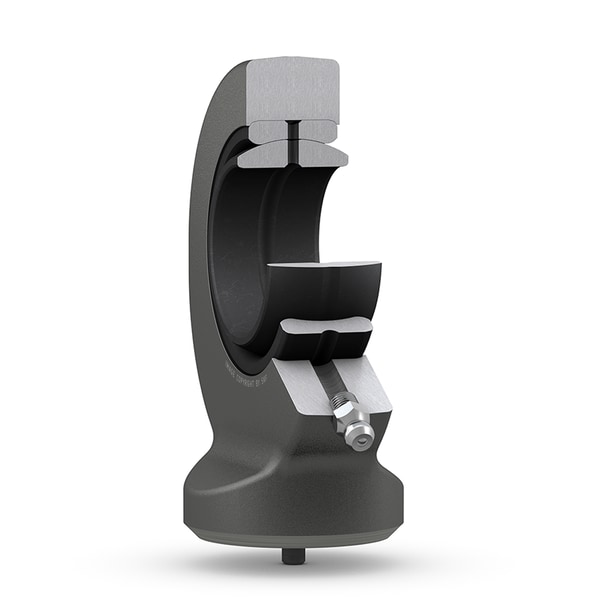

SKF SC 45 ES

Rod ends

(BRAND)：SKF

(Availability)：In Stock

d 45.0 mm Bore diameter

d₂ 104.0 mm Diameter head

B 32.0 mm Width inner ring

C₁ 28.0 mm Width head

h₂ 77.0 mm Height shank end face - centre rod end eye

α 7.0 ° Angle of tilt

d_k 60.0 mm Raceway diameter inner ring

d₅ 60.0 mm Diameter welding shank

d₆ 6.0 mm Diameter centering pin at welding shank end

l₆ 132.0 mm Length (height) housing

l₇ 50.0 mm Distance shank chamfer - centre rod end eye

l₈ 4.0 mm Length chamfer at welding shank end

r₁ 0.6 mm Chamfer dimension bore

mass 1.97 kg Product net weight
