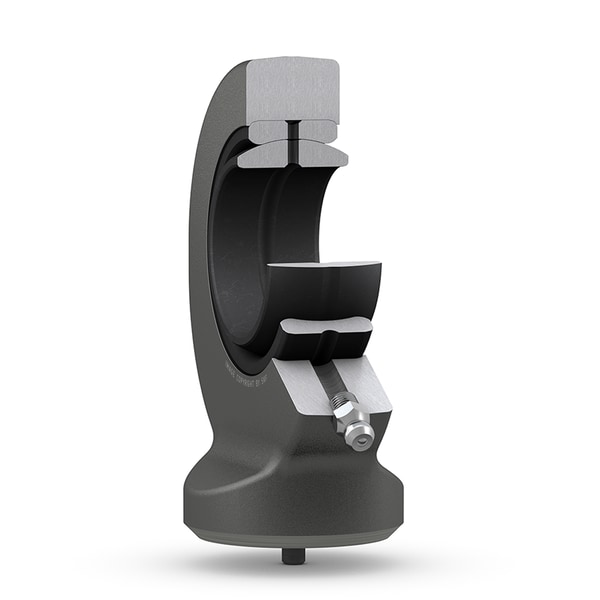

SKF SC 80 ES

Rod ends

(BRAND)：SKF

(Availability)：In Stock

d 80.0 mm Bore diameter

d₂ 182.0 mm Diameter head

B 55.0 mm Width inner ring

C₁ 48.0 mm Width head

h₂ 141.0 mm Height shank end face - centre rod end eye

α 6.0 ° Angle of tilt

d_k 105.0 mm Raceway diameter inner ring

d₅ 97.0 mm Diameter welding shank

d₆ 6.0 mm Diameter centering pin at welding shank end

l₆ 237.0 mm Length (height) housing

l₇ 98.0 mm Distance shank chamfer - centre rod end eye

l₈ 5.0 mm Length chamfer at welding shank end

r₁ 1.0 mm Chamfer dimension bore

mass 10.8 kg Product net weight
