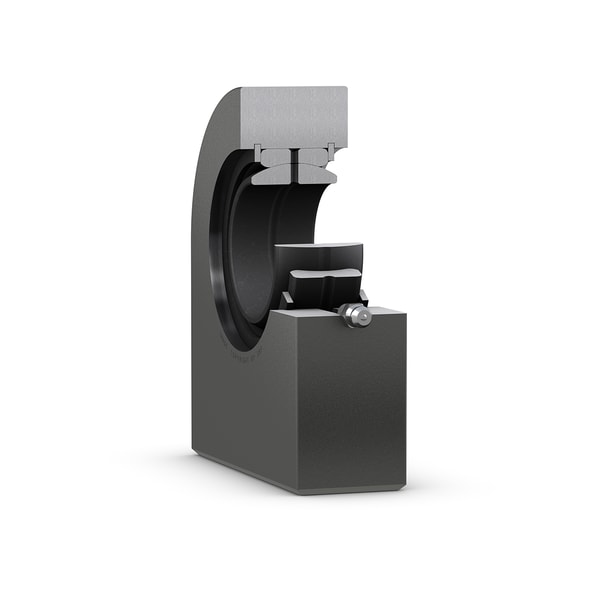

SKF SCF 25 ES
Rod end, requires maintenance, rectangular section welding shank
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
25.0 mm
Bore diameter
d2
56.5 mm
Diameter head
B
20.0 mm
Width inner ring
C1
24.0 mm
Width head
h2
45.0 mm
Height shank end face - centre rod end eye
α
7.0 °
Angle of tilt
dk
35.5 mm
Raceway diameter inner ring
l6
74.0 mm
Length (height) housing
r1
0.6 mm
Chamfer dimension bore
mass
0.498 kg
Product net weight
