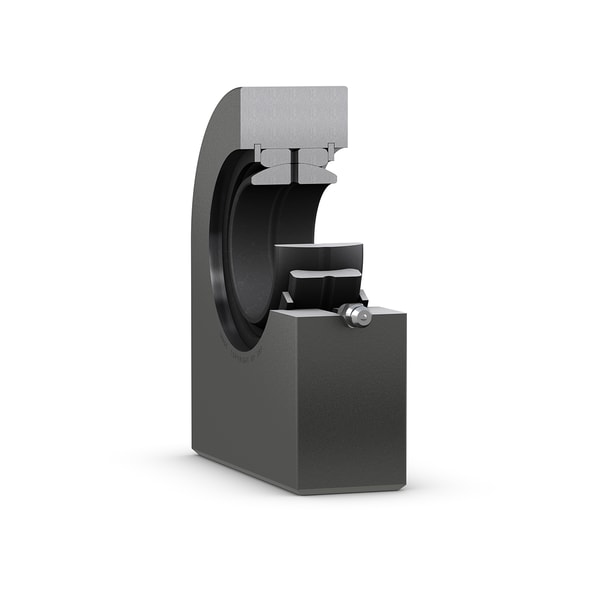

SKF SCF 35 ES
Rod end, requires maintenance, rectangular section welding shank
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
d2
85.0 mm
Diameter head
B
25.0 mm
Width inner ring
C1
31.0 mm
Width head
h2
61.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
47.0 mm
Raceway diameter inner ring
l6
104.0 mm
Length (height) housing
r1
0.6 mm
Chamfer dimension bore
mass
1.45 kg
Product net weight
