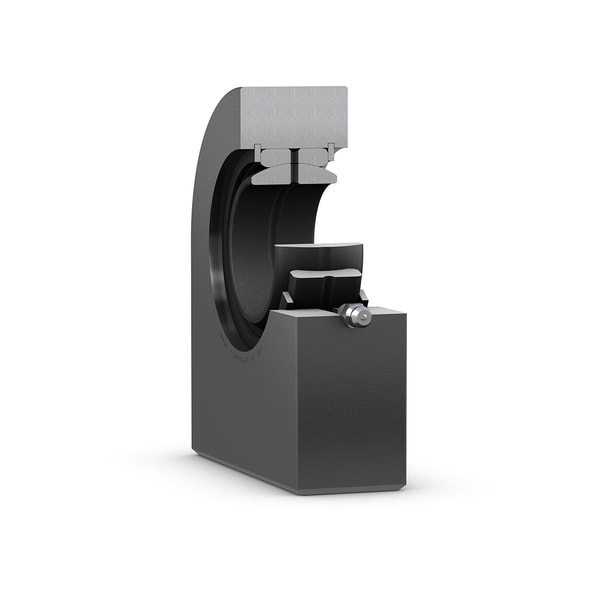

SKF SCF 60 ES
Rod end, requires maintenance, rectangular section welding shank
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
d2
142.5 mm
Diameter head
B
44.0 mm
Width inner ring
C1
51.5 mm
Width head
h2
100.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
80.0 mm
Raceway diameter inner ring
l6
172.5 mm
Length (height) housing
r1
1.0 mm
Chamfer dimension bore
mass
6.77 kg
Product net weight
