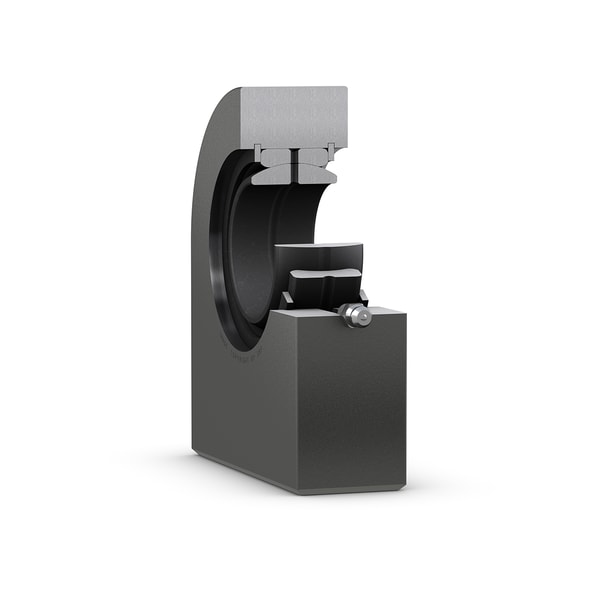

SKF SCF 70 ES
Rod end, requires maintenance, rectangular section welding shank
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
d2
166.5 mm
Diameter head
B
49.0 mm
Width inner ring
C1
57.0 mm
Width head
h2
115.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
92.0 mm
Raceway diameter inner ring
l6
199.0 mm
Length (height) housing
r1
1.0 mm
Chamfer dimension bore
mass
10.6 kg
Product net weight
