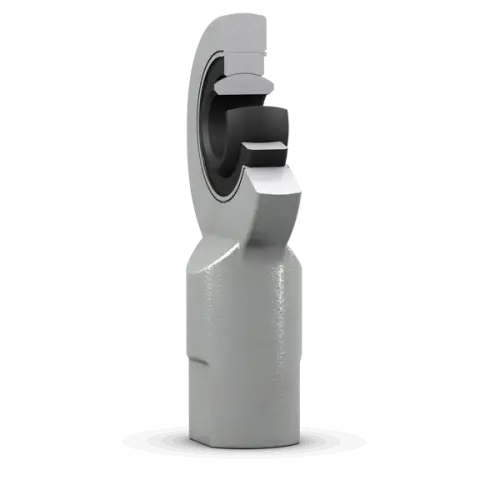

SKF SI 12 E
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
d2
35.0 mm
Diameter head
B
10.0 mm
Width inner ring
G
M 12
Thread
C1
8.5 mm
Width head
h1
50.0 mm
Height shank end face - centre rod end eye
α
10.0 °
Angle of tilt
dk
18.0 mm
Raceway diameter inner ring
d4
19.0 mm
Diameter shank
l3
18.0 mm
Length thread
l4
69.0 mm
Length (height) housing
l5
12.0 mm
Length wrench flat
l7
17.0 mm
Distance shank chamfer - centre rod end eye
w
17.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.105 kg
Product net weight
