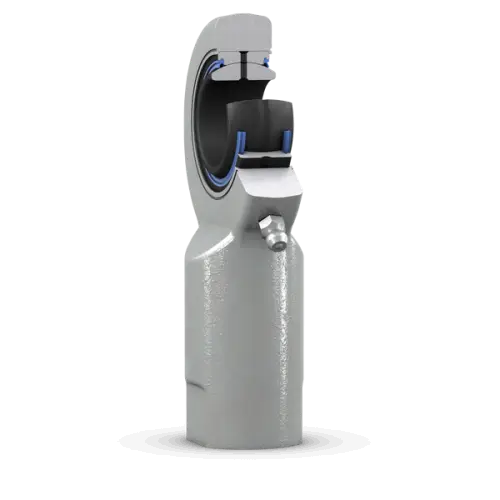

SKF SI 40 ES-2RS
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
d2
94.0 mm
Diameter head
B
28.0 mm
Width inner ring
G
M 42x3
Thread
C1
24.0 mm
Width head
h1
145.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
53.0 mm
Raceway diameter inner ring
d4
58.0 mm
Diameter shank
l3
65.0 mm
Length thread
l4
194.0 mm
Length (height) housing
l5
25.0 mm
Length wrench flat
l7
50.0 mm
Distance shank chamfer - centre rod end eye
w
50.0 mm
Size wrench
r1
0.6 mm
Chamfer dimension bore
mass
2.23 kg
Product net weight
