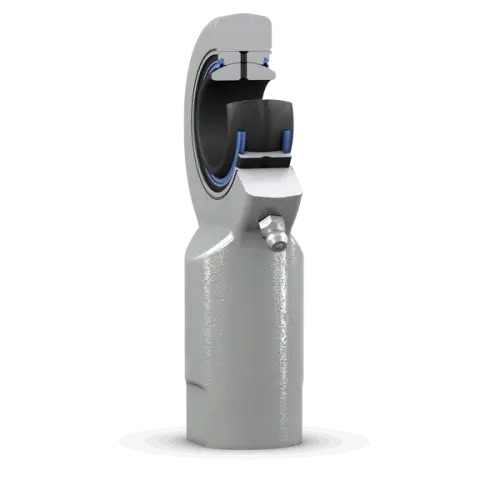

SKF SI 80 ES-2RS
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
d2
182.0 mm
Diameter head
B
55.0 mm
Width inner ring
G
M 80
Thread
C1
48.0 mm
Width head
h1
295.0 mm
Height shank end face - centre rod end eye
α
5.0 °
Angle of tilt
dk
105.0 mm
Raceway diameter inner ring
d4
105.0 mm
Diameter shank
l3
85.0 mm
Length thread
l4
389.0 mm
Length (height) housing
l5
45.0 mm
Length wrench flat
l7
88.0 mm
Distance shank chamfer - centre rod end eye
w
90.0 mm
Size wrench
r1
1.0 mm
Chamfer dimension bore
mass
16.6 kg
Product net weight
