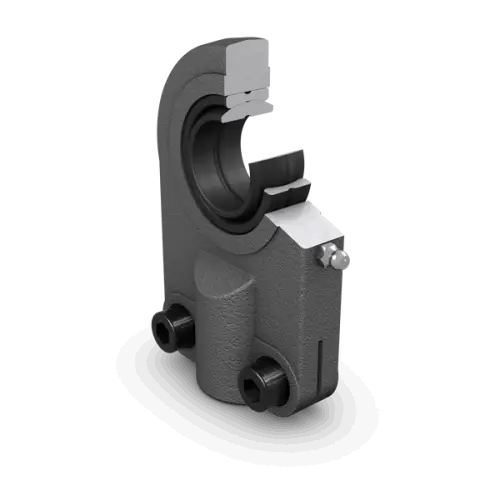

SKF SIJ 50 ES
Rod end, requiring maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
d2
122.0 mm
Diameter head
B
35.0 mm
Width inner ring
G
M 33x2
Thread
C1
30.0 mm
Width head
h1
130.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
66.0 mm
Raceway diameter inner ring
d4
55.0 mm
Housing diameter shank
l3
46.0 mm
Length thread
l4
192.5 mm
Length (height) housing
l7
58.0 mm
Distance shank chamfer - centre rod end eye
N
105.0 mm
Width shank
N1
30.0 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
3.82 kg
Product net weight
