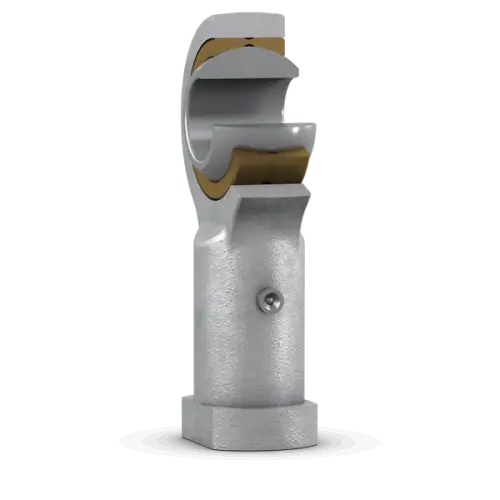

SKF SIKAC 12 M/VZ019
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
d2
33.0 mm
Diameter head
B
16.0 mm
Width inner ring
G
M 12x1.25
Thread
C1
12.5 mm
Width head
h1
50.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
22.225 mm
Raceway diameter inner ring
d3
17.5 mm
Housing diameter shank
d4
23.0 mm
Housing diameter shank
l3
18.0 mm
Length thread
l4
67.0 mm
Length (height) housing
l5
6.5 mm
Length wrench flat
l7
16.0 mm
Distance shank chamfer - centre rod end eye
w
19.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.113 kg
Product net weight
