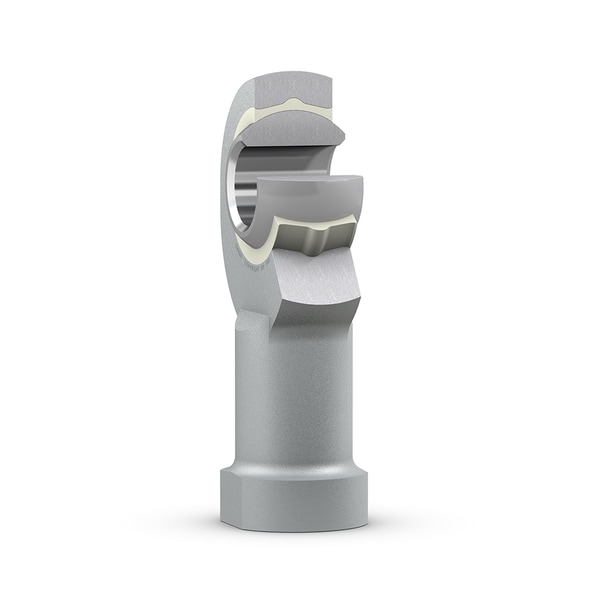

SKF SIKB 10 F
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
d2
29.0 mm
Diameter head
B
14.0 mm
Width inner ring
G
M 10
Thread
C1
11.5 mm
Width head
h1
43.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
19.05 mm
Raceway diameter inner ring
d3
15.0 mm
Housing diameter shank
d4
20.0 mm
Housing diameter shank
l3
15.0 mm
Length thread
l4
59.0 mm
Length (height) housing
l5
6.5 mm
Length wrench flat
l7
14.0 mm
Distance shank chamfer - centre rod end eye
w
17.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.079 kg
Product net weight
