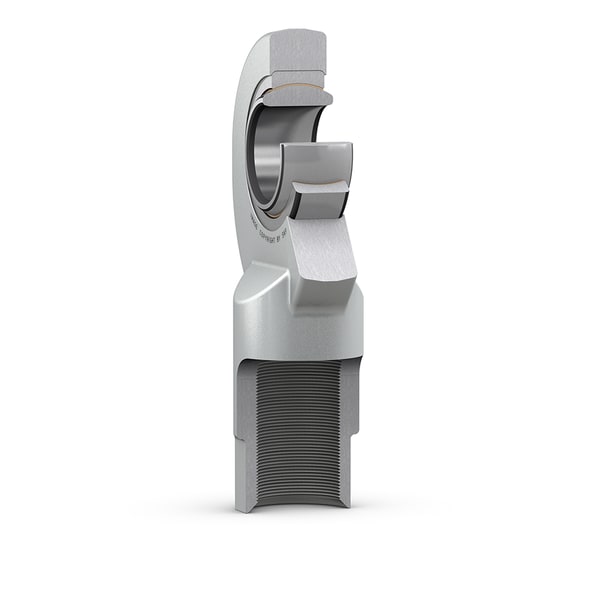

SKF SIL 10 C
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
d2
30.0 mm
Diameter head
B
9.0 mm
Width inner ring
G
M 10
Thread
C1
7.5 mm
Width head
h1
43.0 mm
Height shank end face - centre rod end eye
α
12.0 °
Angle of tilt
dk
16.0 mm
Raceway diameter inner ring
d4
16.0 mm
Diameter shank
l3
15.0 mm
Length thread
l4
60.0 mm
Length (height) housing
l5
11.0 mm
Length wrench flat
l7
14.0 mm
Distance shank chamfer - centre rod end eye
w
14.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.0636 kg
Product net weight
