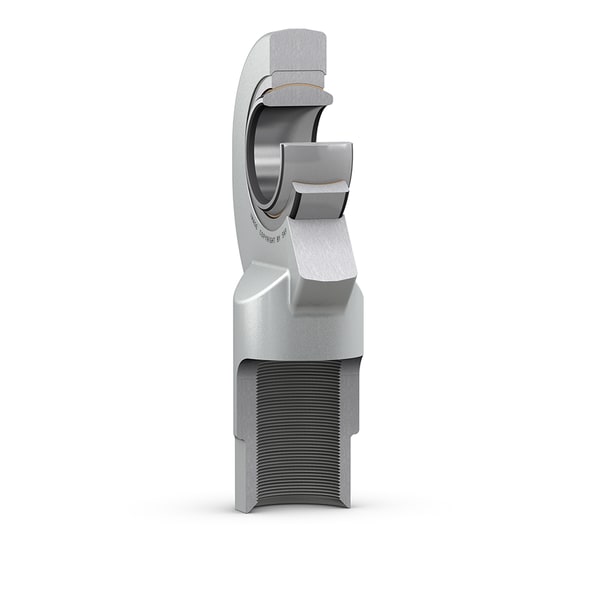

SKF SIL 6 C
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
6.0 mm
Bore diameter
d2
22.0 mm
Diameter head
B
6.0 mm
Width inner ring
G
M 6
Thread
C1
4.5 mm
Width head
h1
30.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
10.0 mm
Raceway diameter inner ring
d4
11.0 mm
Diameter shank
l3
11.0 mm
Length thread
l4
43.0 mm
Length (height) housing
l5
8.0 mm
Length wrench flat
l7
9.0 mm
Distance shank chamfer - centre rod end eye
w
9.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.023 kg
Product net weight
