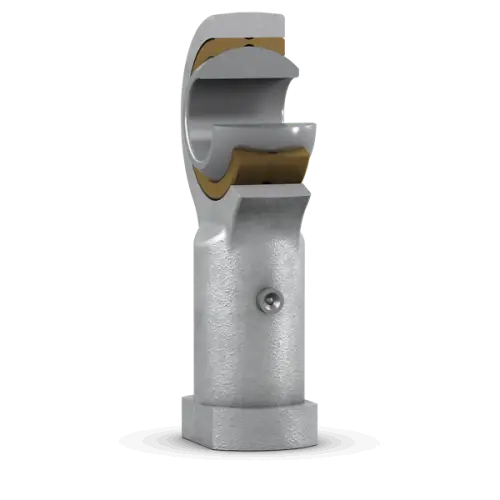

SKF SILKAC 18 M
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
18.0 mm
Bore diameter
d2
47.0 mm
Diameter head
B
23.0 mm
Width inner ring
G
M 18x1.5
Thread
C1
17.5 mm
Width head
h1
71.0 mm
Height shank end face - centre rod end eye
α
15.0 °
Angle of tilt
dk
31.75 mm
Raceway diameter inner ring
d3
25.0 mm
Housing diameter shank
d4
32.0 mm
Housing diameter shank
l3
27.0 mm
Length thread
l4
95.0 mm
Length (height) housing
l5
10.0 mm
Length wrench flat
l7
27.0 mm
Distance shank chamfer - centre rod end eye
w
27.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.307 kg
Product net weight
