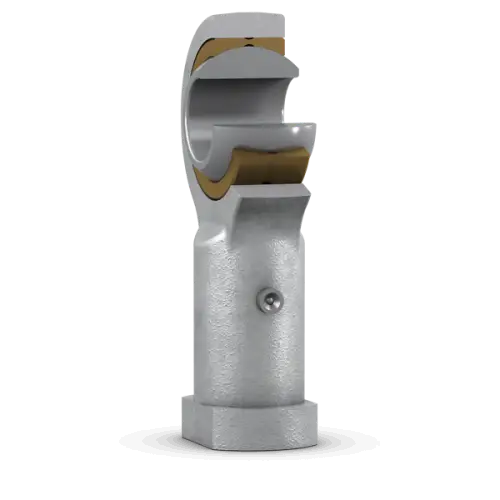

SKF SILKAC 30 M
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
d2
71.0 mm
Diameter head
B
37.0 mm
Width inner ring
G
M 30x2
Thread
C1
27.0 mm
Width head
h1
110.0 mm
Height shank end face - centre rod end eye
α
17.0 °
Angle of tilt
dk
50.8 mm
Raceway diameter inner ring
d3
40.0 mm
Housing diameter shank
d4
52.0 mm
Housing diameter shank
l3
45.0 mm
Length thread
l4
146.0 mm
Length (height) housing
l5
15.0 mm
Length wrench flat
l7
35.0 mm
Distance shank chamfer - centre rod end eye
w
41.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
1.16 kg
Product net weight
