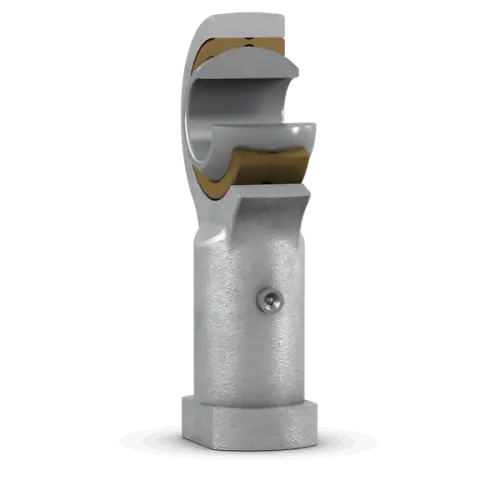

SKF SILKAC 8 M
Rod end, requires maintenance, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
8.0 mm
Bore diameter
d2
25.0 mm
Diameter head
B
12.0 mm
Width inner ring
G
M 8
Thread
C1
9.5 mm
Width head
h1
36.0 mm
Height shank end face - centre rod end eye
α
14.0 °
Angle of tilt
dk
15.875 mm
Raceway diameter inner ring
d3
12.5 mm
Housing diameter shank
d4
17.0 mm
Housing diameter shank
l3
12.0 mm
Length thread
l4
49.0 mm
Length (height) housing
l5
5.0 mm
Length wrench flat
l7
12.0 mm
Distance shank chamfer - centre rod end eye
w
14.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.043 kg
Product net weight
