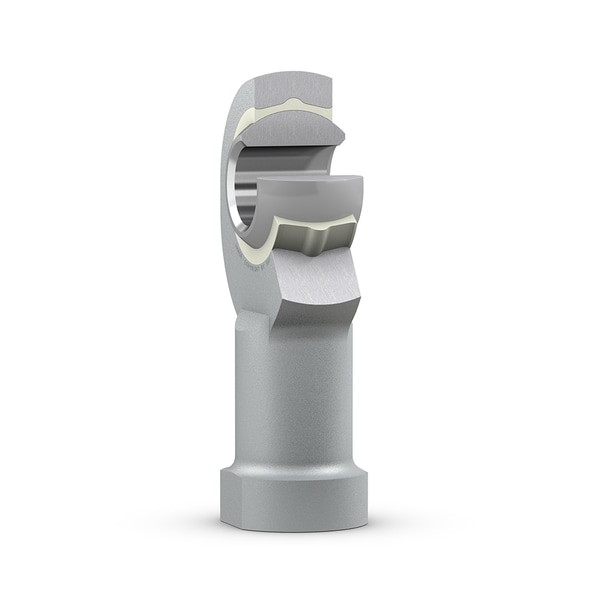

SKF SILKB 14 F
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
14.0 mm
Bore diameter
d2
37.0 mm
Diameter head
B
19.0 mm
Width inner ring
G
M 14
Thread
C1
14.5 mm
Width head
h1
57.0 mm
Height shank end face - centre rod end eye
α
16.0 °
Angle of tilt
dk
25.4 mm
Raceway diameter inner ring
d3
20.0 mm
Housing diameter shank
d4
27.0 mm
Housing diameter shank
l3
21.0 mm
Length thread
l4
77.0 mm
Length (height) housing
l5
8.0 mm
Length wrench flat
l7
18.0 mm
Distance shank chamfer - centre rod end eye
w
22.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.174 kg
Product net weight
