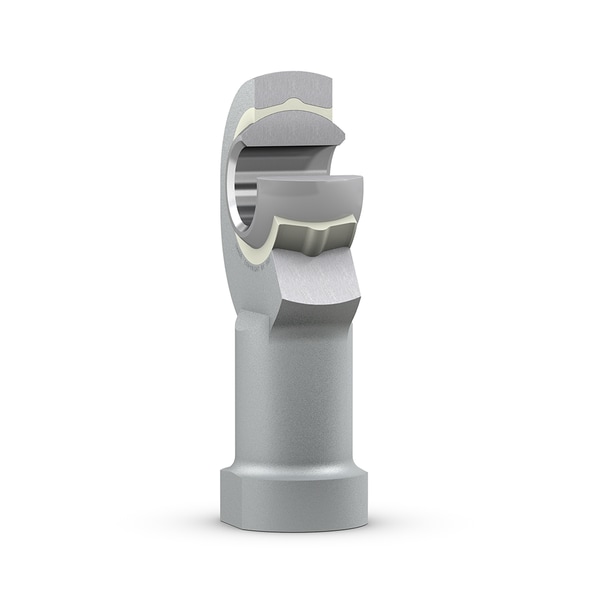

SKF SILKB 20 F
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
d2
51.0 mm
Diameter head
B
25.0 mm
Width inner ring
G
M 20x1.5
Thread
C1
18.5 mm
Width head
h1
77.0 mm
Height shank end face - centre rod end eye
α
14.0 °
Angle of tilt
dk
34.925 mm
Raceway diameter inner ring
d3
27.5 mm
Housing diameter shank
d4
37.0 mm
Housing diameter shank
l3
30.0 mm
Length thread
l4
105.0 mm
Length (height) housing
l5
10.0 mm
Length wrench flat
l7
25.0 mm
Distance shank chamfer - centre rod end eye
w
32.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.39 kg
Product net weight
