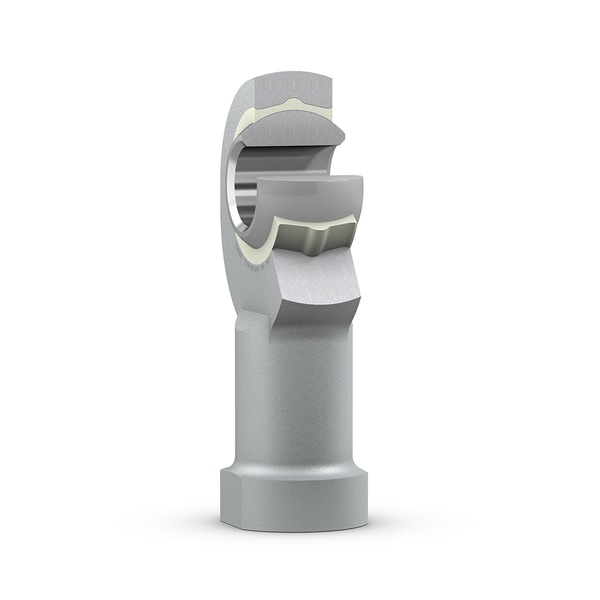

SKF SILKB 6 F
Rod end, maintenance-free, female thread
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
6.0 mm
Bore diameter
d2
21.0 mm
Diameter head
B
9.0 mm
Width inner ring
G
M 6
Thread
C1
7.5 mm
Width head
h1
30.0 mm
Height shank end face - centre rod end eye
α
13.0 °
Angle of tilt
dk
12.7 mm
Raceway diameter inner ring
d3
10.0 mm
Housing diameter shank
d4
14.0 mm
Housing diameter shank
l3
9.0 mm
Length thread
l4
42.0 mm
Length (height) housing
l5
5.0 mm
Length wrench flat
l7
11.0 mm
Distance shank chamfer - centre rod end eye
w
11.0 mm
Size wrench
r1
0.3 mm
Chamfer dimension bore
mass
0.0266 kg
Product net weight
