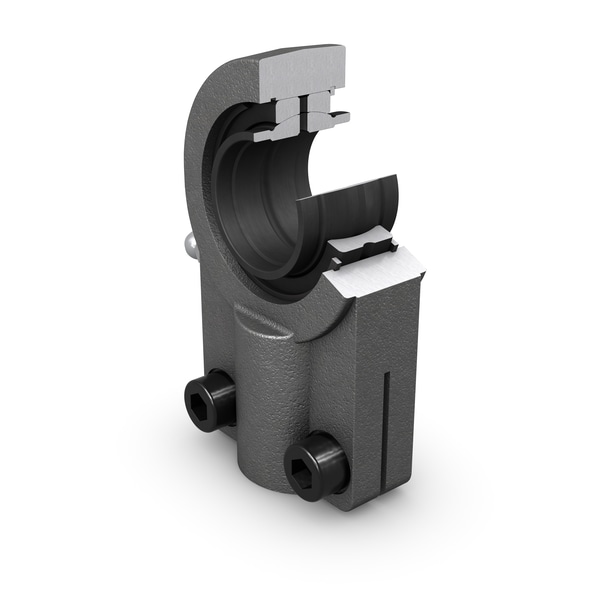

SKF SILQG 63 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
63.0 mm
Bore diameter
d2
138.0 mm
Diameter head
B
63.0 mm
Width inner ring
G
M 48x2
Thread
C1
53.5 mm
Width head
h1
140.0 mm
Height shank end face - centre rod end eye
α
4.0 °
Angle of tilt
dk
83.0 mm
Raceway diameter inner ring
d4
71.5 mm
Housing diameter shank
l3
64.0 mm
Length thread
l4
213.5 mm
Length (height) housing
l7
62.0 mm
Distance shank chamfer - centre rod end eye
N
116.0 mm
Width shank
N1
40.0 mm
Thickness shank base for clamping bolts
r1
1.0 mm
Chamfer dimension bore
mass
6.83 kg
Product net weight
