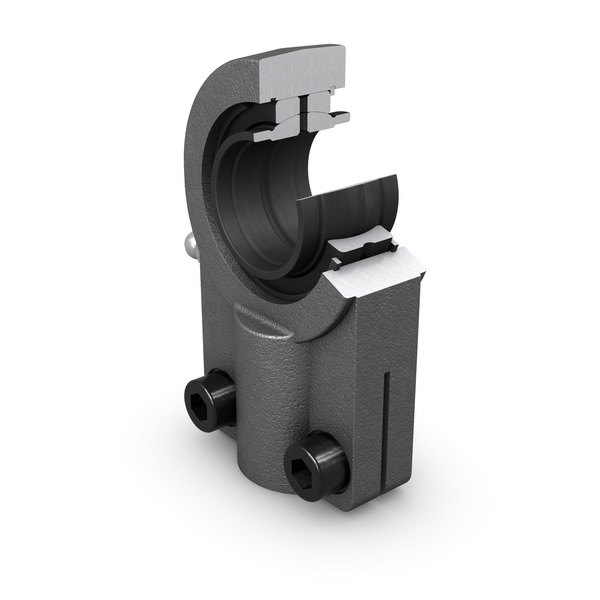

SKF SIQG 125 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
125.0 mm
Bore diameter
d2
268.0 mm
Diameter head
B
125.0 mm
Width inner ring
G
M 100x3
Thread
C1
105.0 mm
Width head
h1
260.0 mm
Height shank end face - centre rod end eye
α
4.0 °
Angle of tilt
dk
160.0 mm
Raceway diameter inner ring
d4
139.0 mm
Housing diameter shank
l3
113.0 mm
Length thread
l4
408.0 mm
Length (height) housing
l7
120.0 mm
Distance shank chamfer - centre rod end eye
N
202.0 mm
Width shank
N1
75.0 mm
Thickness shank base for clamping bolts
r1
1.0 mm
Chamfer dimension bore
mass
43.0 kg
Product net weight
