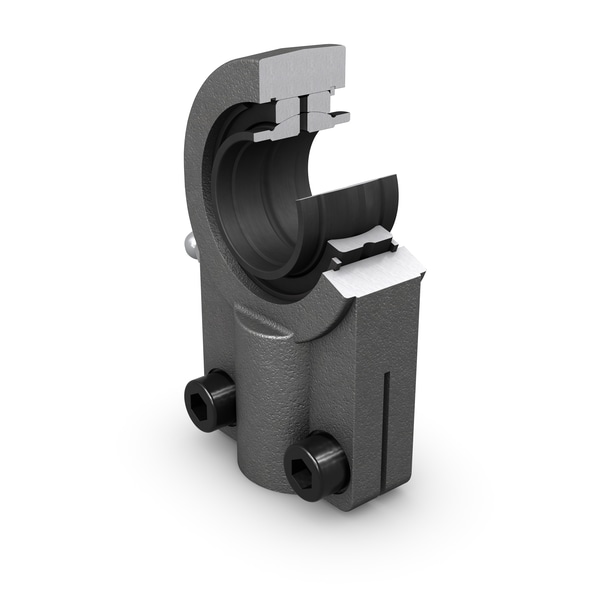

SKF SIQG 200 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
200.0 mm
Bore diameter
d2
421.0 mm
Diameter head
B
200.0 mm
Width inner ring
G
M 160x4
Thread
C1
165.0 mm
Width head
h1
390.0 mm
Height shank end face - centre rod end eye
α
4.0 °
Angle of tilt
dk
250.0 mm
Raceway diameter inner ring
d4
221.0 mm
Housing diameter shank
l3
161.0 mm
Length thread
l4
623.0 mm
Length (height) housing
l7
195.0 mm
Distance shank chamfer - centre rod end eye
N
323.0 mm
Width shank
N1
106.0 mm
Thickness shank base for clamping bolts
r1
1.1 mm
Chamfer dimension bore
mass
165.0 kg
Product net weight
