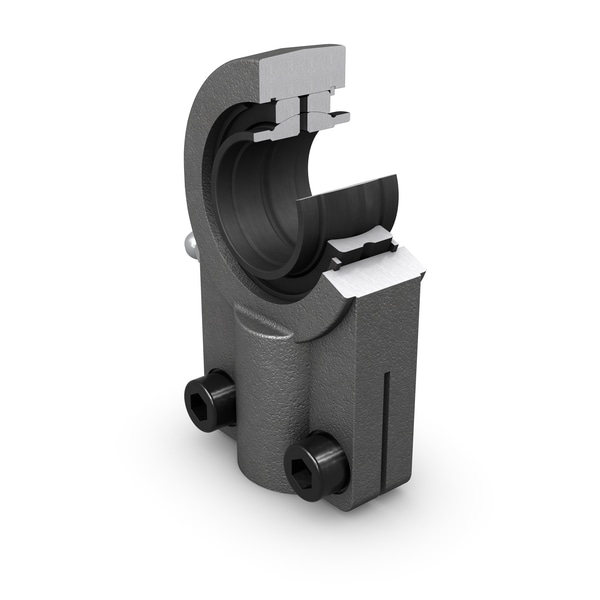

SKF SIQG 32 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
32.0 mm
Bore diameter
d2
72.5 mm
Diameter head
B
32.0 mm
Width inner ring
G
M 27x2
Thread
C1
28.0 mm
Width head
h1
80.0 mm
Height shank end face - centre rod end eye
α
4.0 °
Angle of tilt
dk
43.0 mm
Raceway diameter inner ring
d4
40.0 mm
Housing diameter shank
l3
37.0 mm
Length thread
l4
119.0 mm
Length (height) housing
l7
31.0 mm
Distance shank chamfer - centre rod end eye
N
67.0 mm
Width shank
N1
23.5 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
1.12 kg
Product net weight
