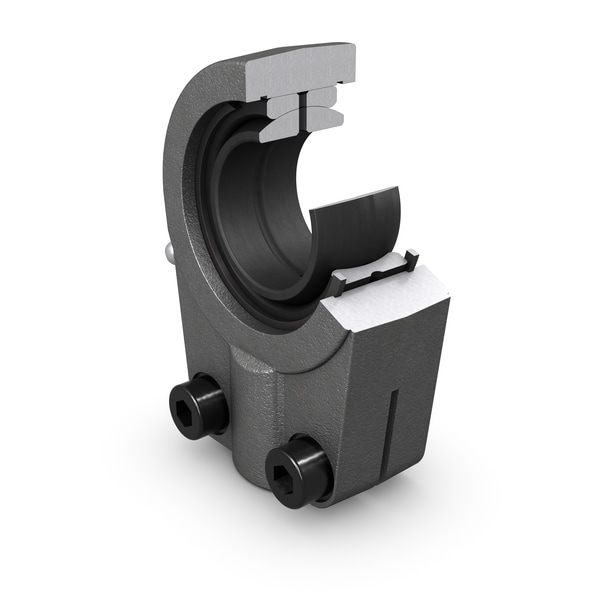

SKF SIR 25 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
d2
58.0 mm
Diameter head
B
20.0 mm
Width inner ring
G
M 16x1.5
Thread
C1
23.5 mm
Width head
h1
50.0 mm
Height shank end face - centre rod end eye
α
7.0 °
Angle of tilt
dk
35.5 mm
Raceway diameter inner ring
d4
26.0 mm
Housing diameter shank
l3
17.0 mm
Length thread
l4
81.0 mm
Length (height) housing
l7
27.0 mm
Distance shank chamfer - centre rod end eye
N
46.0 mm
Width shank
N1
23.5 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
0.462 kg
Product net weight
