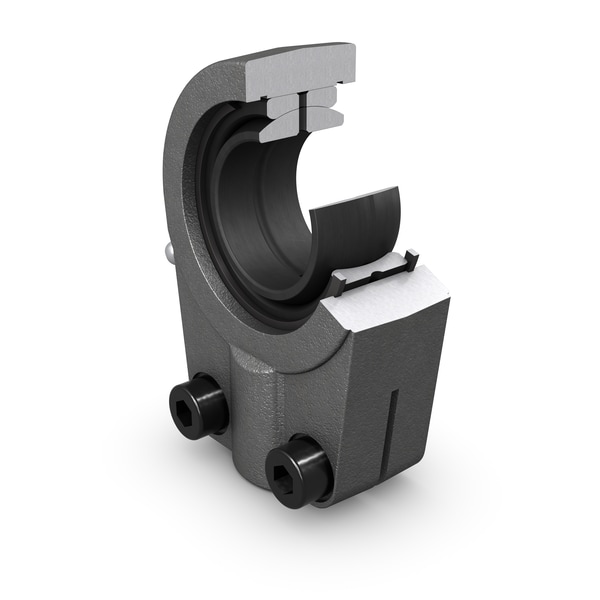

SKF SIR 30 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
d2
66.0 mm
Diameter head
B
22.0 mm
Width inner ring
G
M 22x1.5
Thread
C1
28.5 mm
Width head
h1
60.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
40.7 mm
Raceway diameter inner ring
d4
33.0 mm
Housing diameter shank
l3
23.0 mm
Length thread
l4
95.0 mm
Length (height) housing
l7
29.0 mm
Distance shank chamfer - centre rod end eye
N
50.0 mm
Width shank
N1
28.5 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
0.729 kg
Product net weight
