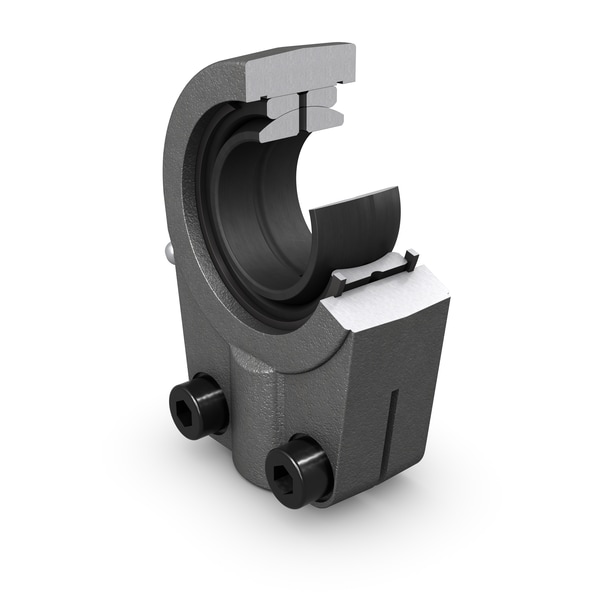

SKF SIR 35 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
d2
80.0 mm
Diameter head
B
25.0 mm
Width inner ring
G
M 28x1.5
Thread
C1
30.5 mm
Width head
h1
70.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
47.0 mm
Raceway diameter inner ring
d4
41.5 mm
Housing diameter shank
l3
29.0 mm
Length thread
l4
113.0 mm
Length (height) housing
l7
37.0 mm
Distance shank chamfer - centre rod end eye
N
66.0 mm
Width shank
N1
30.5 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
1.2 kg
Product net weight
