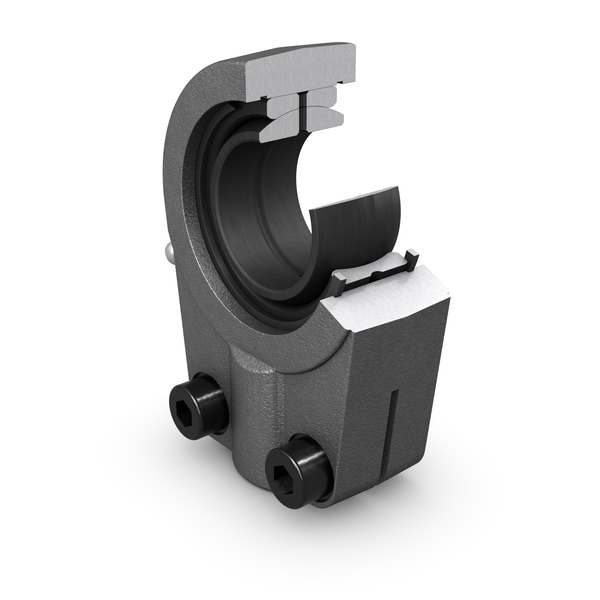

SKF SIR 40 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
d2
96.0 mm
Diameter head
B
28.0 mm
Width inner ring
G
M 35x1.5
Thread
C1
35.5 mm
Width head
h1
85.0 mm
Height shank end face - centre rod end eye
α
7.0 °
Angle of tilt
dk
53.0 mm
Raceway diameter inner ring
d4
50.5 mm
Housing diameter shank
l3
36.0 mm
Length thread
l4
136.0 mm
Length (height) housing
l7
44.0 mm
Distance shank chamfer - centre rod end eye
N
76.0 mm
Width shank
N1
34.0 mm
Thickness shank base for clamping bolts
r1
0.6 mm
Chamfer dimension bore
mass
2.2 kg
Product net weight
