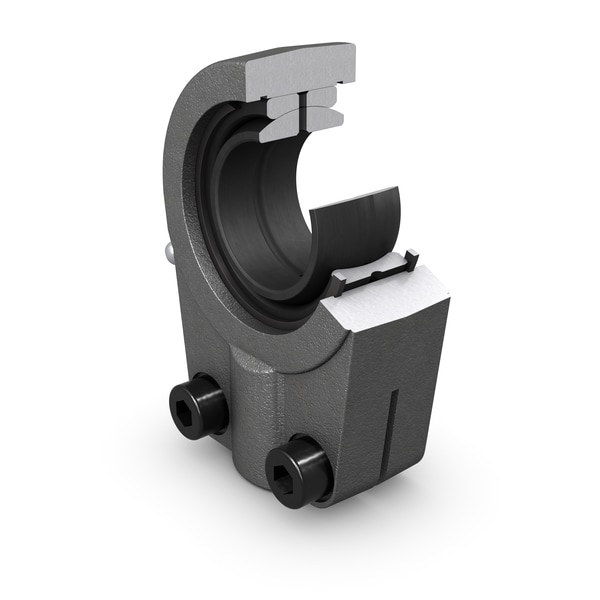

SKF SIR 70 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
d2
156.5 mm
Diameter head
B
49.0 mm
Width inner ring
G
M 65x1.5
Thread
C1
55.5 mm
Width head
h1
150.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
92.0 mm
Raceway diameter inner ring
d4
87.5 mm
Housing diameter shank
l3
66.0 mm
Length thread
l4
234.5 mm
Length (height) housing
l7
74.0 mm
Distance shank chamfer - centre rod end eye
N
130.0 mm
Width shank
N1
55.5 mm
Thickness shank base for clamping bolts
r1
1.0 mm
Chamfer dimension bore
mass
9.8 kg
Product net weight
