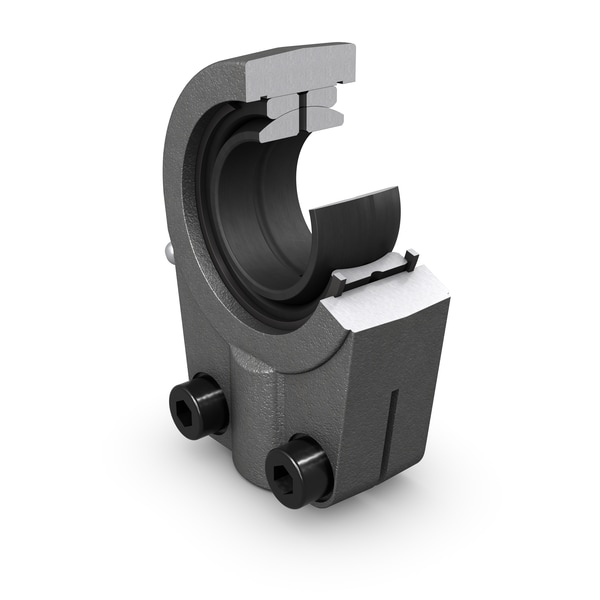

SKF SIR 80 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
d2
178.5 mm
Diameter head
B
55.0 mm
Width inner ring
G
M 80x2
Thread
C1
60.5 mm
Width head
h1
170.0 mm
Height shank end face - centre rod end eye
α
6.0 °
Angle of tilt
dk
105.0 mm
Raceway diameter inner ring
d4
107.0 mm
Housing diameter shank
l3
81.0 mm
Length thread
l4
267.5 mm
Length (height) housing
l7
79.0 mm
Distance shank chamfer - centre rod end eye
N
160.0 mm
Width shank
N1
60.5 mm
Thickness shank base for clamping bolts
r1
1.0 mm
Chamfer dimension bore
mass
13.0 kg
Product net weight
