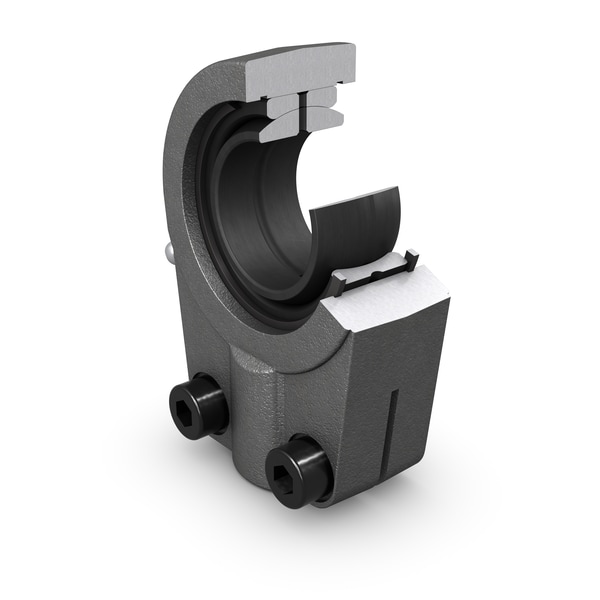

SKF SIR 90 ES
Rod end, requires maintenance, female thread with clamping screws
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
d2
208.0 mm
Diameter head
B
60.0 mm
Width inner ring
G
M 100x2
Thread
C1
65.5 mm
Width head
h1
210.0 mm
Height shank end face - centre rod end eye
α
5.0 °
Angle of tilt
dk
115.0 mm
Raceway diameter inner ring
d4
125.0 mm
Housing diameter shank
l3
101.0 mm
Length thread
l4
324.5 mm
Length (height) housing
l7
90.0 mm
Distance shank chamfer - centre rod end eye
N
181.0 mm
Width shank
N1
63.5 mm
Thickness shank base for clamping bolts
r1
1.0 mm
Chamfer dimension bore
mass
21.5 kg
Product net weight
