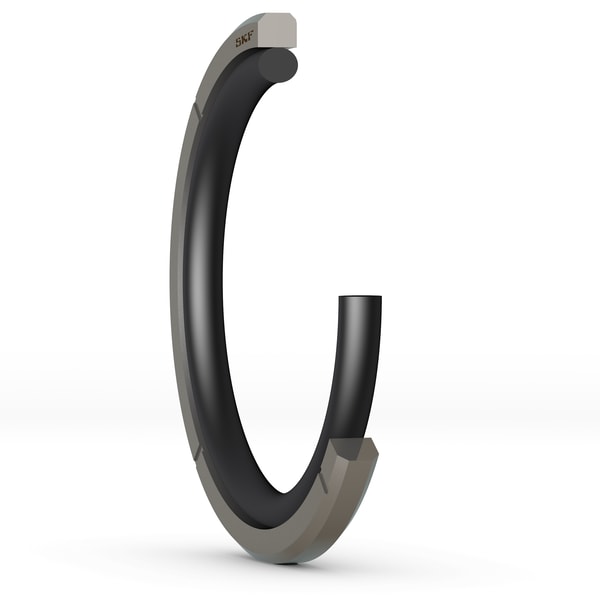

SKF UNP-90X70X13-E6W
Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
90.0 mm
Cylinder bore diameter
d
70.0 mm
Piston groove diameter
L
13.2 mm
Piston groove width
L+H
15.2 mm
Additional groove width
H
12.0 mm
Nominal seal width
S
10.0 mm
Radial depth
R
0.75 mm
Groove radius
C
7.0 mm
Lead-in chamfer length
mass
0.032 kg
Product net weight
