SKF UNP187-1875-312-H9J

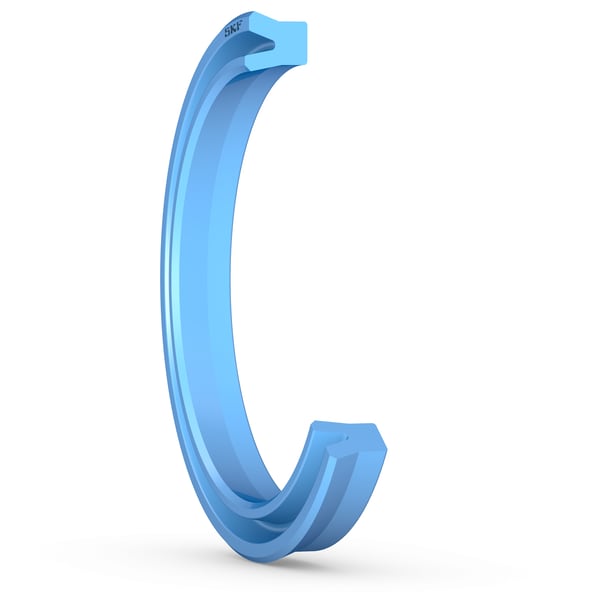

Single-acting polyurethane piston U-cup seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
57.15 mm
Cylinder bore diameter
d
47.63 mm
Piston groove diameter
L
8.72 mm
Piston groove width
L+H
11.1 mm
Additional groove width
H
7.92 mm
Nominal seal width
S
4.75 mm
Radial depth
R
0.38 mm
Groove radius
C
6.35 mm
Lead-in chamfer length
mass
0.0094 kg
Product net weight
