Timken 293/530EM

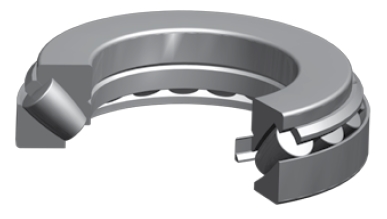

Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
530 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

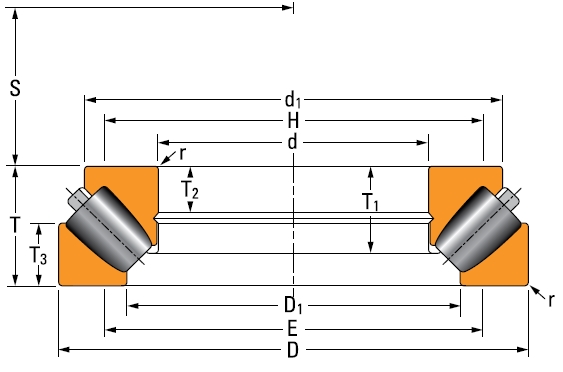

Dimensions
D - Outside Diameter
800 mm
d1 - Cone Outside Diameter
745 mm
D1 - Cup Bore
648 mm
E - Shoulder Diameter - Housing (Max)
670 mm
H - Shoulder Diameter - Shaft (Min)
697 mm
r - Fillet Radius
6 mm
S - Dimension
295 mm
T - Total Width
160 mm
T1 - Cage Position
112.3 mm
T2 - Groove Position
58 mm
T3 - Cup Width
76 mm
Basic Load Ratings
Static Load Rating
24100000 N
Dynamic Load Rating
5600000 N
Thermal Speed Rating
390 rpm
