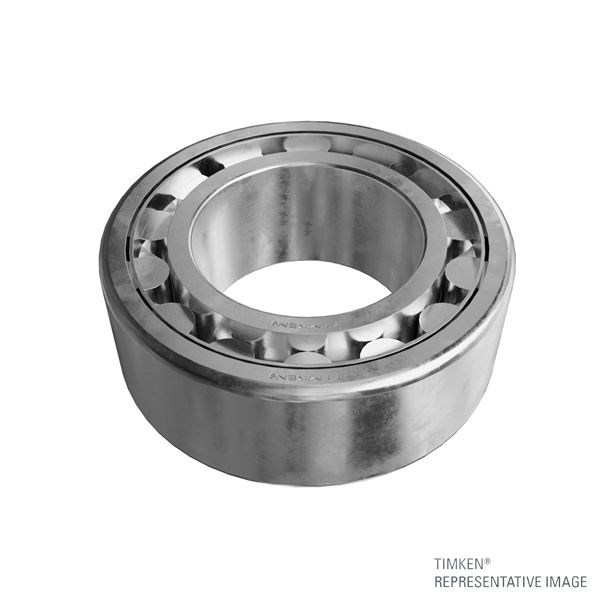

Timken A-5232-WS
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
160 mm
Static Load Rating C
1750000 N
Dynamic Load Rating C1
1270000 N
Dimension S2
5.46 mm
Geometry Factor C3
0.1640
Thermal Speed Ratings - Oil
1400 rpm
Thermal Speed Ratings - Grease
1200 rpm

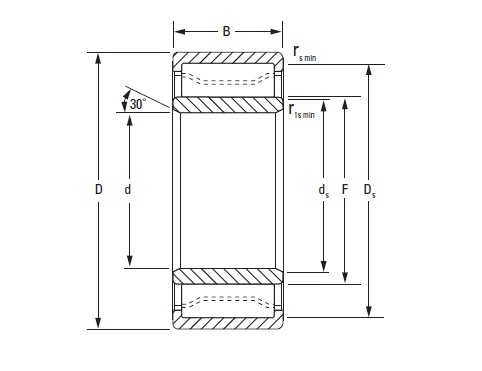

Bearing Dimensions
O.D. D
290 mm
Width B
98.425 mm
DUR/DOR F/E
193.787 mm
Type
WS
Mounting Data
Chamfer r
7.5 mm
Chamfer r4
3 mm
Backing Shaft Diameter d
187.8 mm
Backing Housing Diameter D
265.3 mm
