Timken A-5240-WM R6
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
200 mm
Static Load Rating C
2370000 N
Dynamic Load Rating C1
1600000 N
Dimension S2
6.00 mm
Geometry Factor C3
0.1890
Thermal Speed Ratings - Oil
1100 rpm
Thermal Speed Ratings - Grease
990 rpm

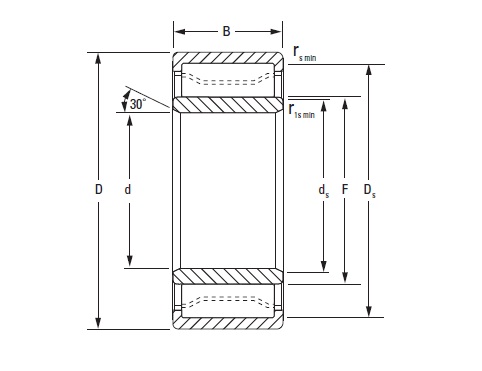

Bearing Dimensions
O.D. D
360 mm
Width B
120.65 mm
DUR/DOR F/E
242.369 mm
Type
WM
Mounting Data
Chamfer r
9.5 mm
Chamfer r4
4 mm
Backing Shaft Diameter d
233 mm
Backing Housing Diameter D
318.6 mm
