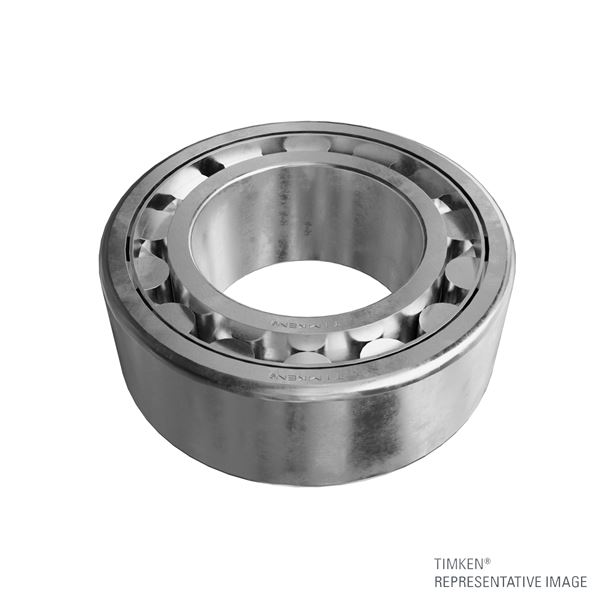

Timken A-5244-WM R6
Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
220 mm
Static Load Rating C
3340000 N
Dynamic Load Rating C1
2300000 N
Dimension S2
4.60 mm
Geometry Factor C3
0.2110
Thermal Speed Ratings - Oil
860 rpm
Thermal Speed Ratings - Grease
790 rpm

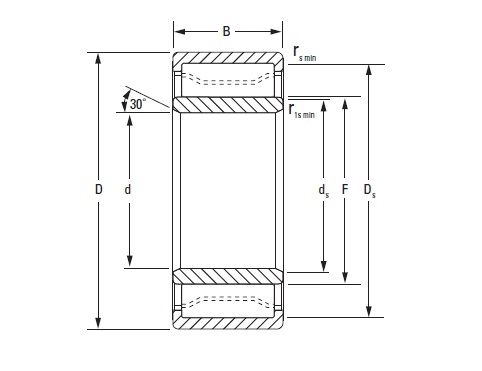

Bearing Dimensions
O.D. D
400 mm
Width B
133.35 mm
DUR/DOR F/E
266.078 mm
Type
WM
Mounting Data
Chamfer r
11 mm
Chamfer r4
4 mm
Backing Shaft Diameter d
260.4 mm
Backing Housing Diameter D
366.7 mm
