Timken A-5248-WM R6

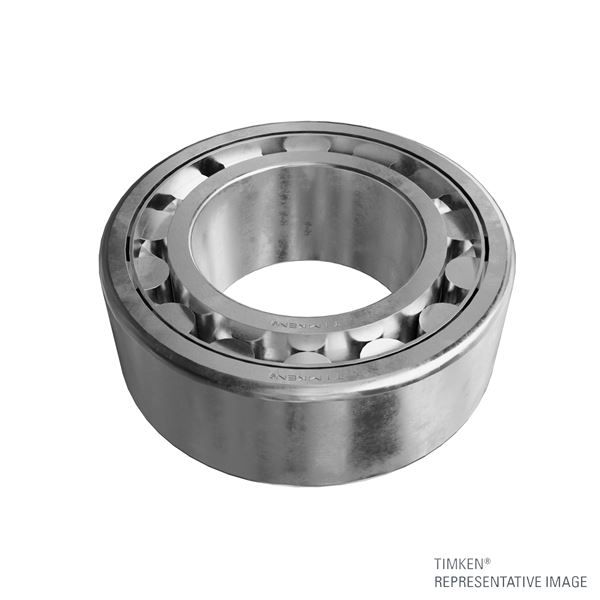

Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
240 mm
Static Load Rating C
4010000 N
Dynamic Load Rating C1
2750000 N
Dimension S2
4.75 mm
Geometry Factor C3
0.2280
Thermal Speed Ratings - Oil
750 rpm
Thermal Speed Ratings - Grease
690 rpm

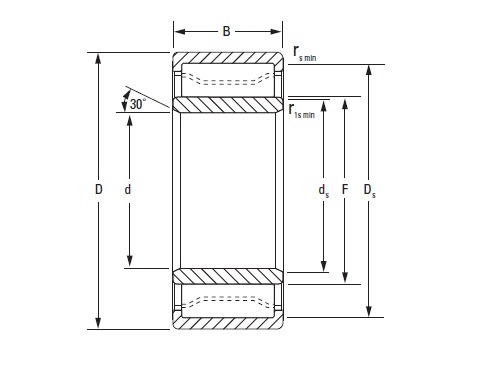

Bearing Dimensions
O.D. D
440 mm
Width B
146.05 mm
DUR/DOR F/E
291.368 mm
Type
WM
Mounting Data
Chamfer r
11 mm
Chamfer r4
4 mm
Backing Shaft Diameter d
285 mm
Backing Housing Diameter D
402.4 mm
