Timken AN 26-W 26
Inch Accessories - Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

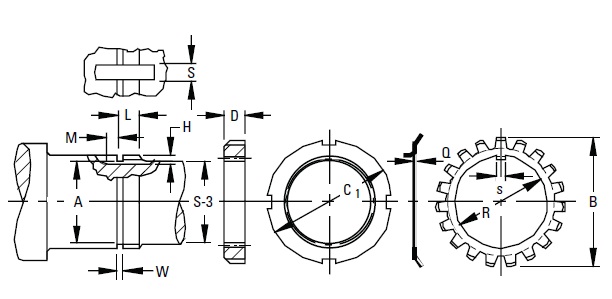

Specifications
Bearing Bore
130 mm
Locknut
AN 26
Lockwasher
W 26
Threads
Major Diameter
129.69 mm
Threads No. per Inch
12
Shaft
Relief Diameter A
126.57 mm
Diameter S-3
125.41 mm
W1
4.37 mm
L2
21.44 mm
H3
4.8 mm
S4
12.70 mm
M5
7.92 mm
Locknut
C
171.58 mm
D
22.48 mm
Lockwasher
Q
2.92 mm
R
131.85 mm
B
178.59 mm
s
11.05 mm
