Timken N 10-W 10
Inch Accessories - Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Bore
50 mm
Locknut
N 10
Lockwasher
W 10

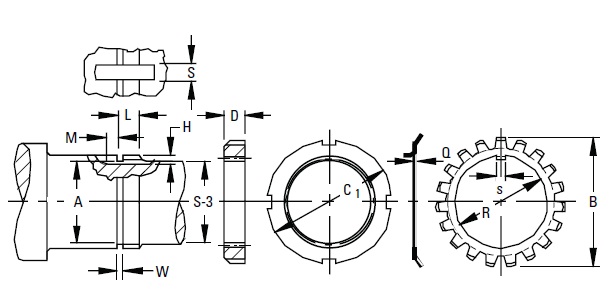

Threads
Major Diameter
49.96 mm
Threads No. per Inch
18
Shaft
Relief Diameter A
47.96 mm
Diameter S-3
47.63 mm
W1
3.58 mm
L2
11.89 mm
H3
2.4 mm
S4
7.92 mm
M5
3.96 mm
Locknut
C
68.4 mm
D
12.95 mm
Lockwasher
Q
1.22 mm
R
50.6 mm
B
74.22 mm
s
7.37 mm
