Timken N 08-W 08
Inch Accessories - Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

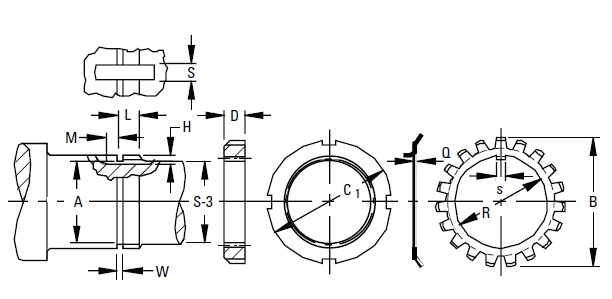

Specifications
Bearing Bore
40 mm
Locknut
N 08
Lockwasher
W 08
Threads
Major Diameter
39.7 mm
Threads No. per Inch
18
Shaft
Relief Diameter A
37.69 mm
Diameter S-3
36.51 mm
W1
2.77 mm
L2
11.13 mm
H3
2.4 mm
S4
7.92 mm
M5
3.18 mm
Locknut
C
57.28 mm
D
11.38 mm
Lockwasher
Q
1.22 mm
R
40.21 mm
B
63.4 mm
s
7.37 mm
