Timken N 07-W 07
Inch Accessories - Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

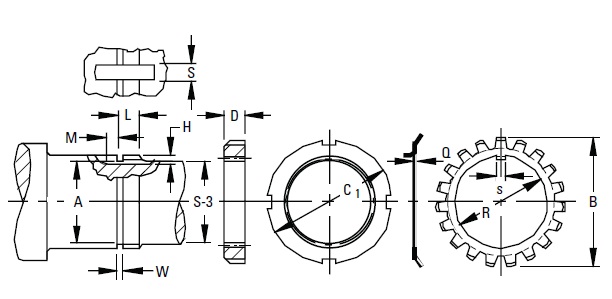

Specifications
Bearing Bore
35 mm
Locknut
N 07
Lockwasher
W 07
Threads
Major Diameter
34.95 mm
Threads No. per Inch
18
Shaft
Relief Diameter A
32.94 mm
Diameter S-3
31.75 mm
W1
2.77 mm
L2
10.34 mm
H3
2.4 mm
S4
4.78 mm
M5
3.18 mm
Locknut
C
52.53 mm
D
11.38 mm
Lockwasher
Q
1.02 mm
R
35.46 mm
B
57.150 mm
s
4.47 mm
