Timken EE157337 – 157430 (Y1S-157430)

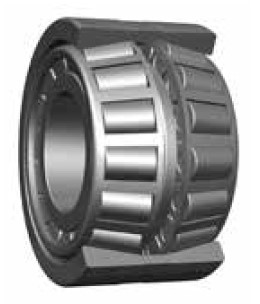

Tapered Roller Bearings - 2TS-DM (Matched Bearing Assembly, Direct Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
EE157337 – 157430 (Y1S-157430)
Specifications
Cone Part Number
EE157337
Cup Part Number
157430
Outer Spacer Part Number
Y1S-157430
Design Unit
Inch
Dimensions
d - Bore
857.250 mm
D - Cup Outer Diameter
1092.200 mm
T - Width
241.3 mm
B - Width
222.250 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.300 mm
r - Cup Backface "To Clear" Radius2
6.35 mm
db - Cone Backface Backing Diameter
927 mm
Da - Cup Frontface Backing Diameter
1070.61 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
754000 N
C1 - Dynamic Radial Rating (1 million revolutions)4
5060000 N
C5
719000 N
C906
1310000 N
Factors
K - Factor7
1.05
e - ISO Factor8
0.56
Y1 - ISO Factor9
1.21
Y2 - ISO Factor10
1.8
